Peptide Bonds & Protein Structure - P2
Chemical structure of the peptide bond (bottom) and the three-dimensional structure of a peptide bond between an alanine and an adjacent amino acid (top/inset).
A peptide bond (circled) between Leu and Thr in a protein structure. Green=carbon, red=oxygen, blue=nitrogen.
Protein Structure and Function
Structure of a protein is directly related to its function, so that anything that severely disrupts the shape will also disrupt the function. Denaturation is alteration of a protein shape through some form of external stress (for example, by applying heat, acid or alkali), in such a way that it can’t carry out its cellular function.

Levels of Protein Structure
Every protein has at least three levels of structure: primary, secondary and tertiary. Quaternary structure is a grouping of more than one amino acid chain.

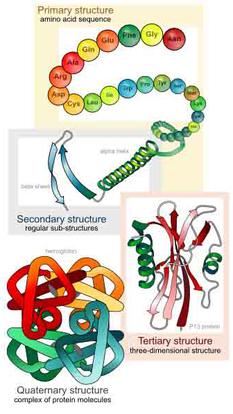

Levels of Protein Structure: Primary, Secondary, Tertiary & Quaternary
Peptide Bonds
Peptide bonds are the covalent bonds which link amino acids together into chains, like the beads on a necklace. A dipeptide is composed of 2 amino acids linked together, a polypeptide is more than two.

Page last updated: 9/2013
The SPO website is best viewed in Google Chrome,
Microsoft Explorer or Apple Safari.
Virtual Cell Biology

The Virtual Cell Biology Classroom provides a wide range of free educational resources including Power Point Lectures, Study Guides, Review Questions and Practice Test Questions.
Endomembrane System of a Eukaryotic Cell, Mariana Ruiz
​Page last updated: 8/2015

FREE Printable
Organic Macromolecule
study aid.

See the
Organic Chemistry Lecture PPT for info that will help you complete this table.

Back to
What Are Amino Acids?
from the free STEM
education site
Science Prof Online
PAGE 2                                           <  Back to Page 1
BACK TO Proteins - Page 1
  • ​Primary Structure: Amino acids linked together by peptide bonds into a peptide chains.

  • Secondary Structure: Ionic bonds, hydrogen bonds, and hydrophilic / hydrophobic characteristics cause many polypeptide chains to fold into coils (α–helices), or accordion-like structures (β-pleated sheets). Proteins are typically composed of both α–helices and β-pleated sheets linked by short sequences of amino acids.

  • Tertiary Structure: This is the three-dimensional structure of single protein molecule; a spatial arrangement of secondary structures.

  • Quaternary Structure: This level of structure represents a complex of several protein molecules or polypeptide chains, which function as part of the protein complex.

Sources and Helpful Organic Chemistry Links
  • Bauman, R. (2014) Microbiology
  • Park Talaro, K. (2008) Foundations in Microbiology, McGraw-Hill.
